If you’re familiar with today’s industry-leading construction materials, you’ve likely come across the term Fibre Reinforced Plastic (FRP) more than once.
FRP is one of those materials that quietly disrupts industries, but many individuals who are not engineers or contractors are not certainly aware of it.
So, let’s cut the jargon–what exactly is FRP, what makes it such a game-changing material in construction, and how does it compare to other cutting-edge materials like Fiber Reinforced Concrete?
Table of Contents
Regardless of whether you’re an educated civil engineer, contractor, architect, or simply someone who is curious about intelligent construction materials, this guide will explain everything you need to know about FRP without specialized language, with directness and clarity.
What is Fiber Reinforced Plastic (FRP)?

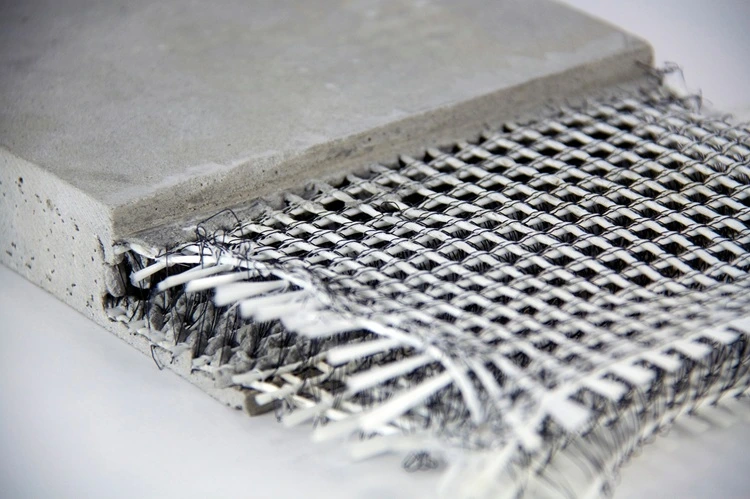

Fiber Reinforced Plastic consists of a composite material made from a polymer matrix (usually a resin) and fiber reinforcement. It is these fibers that give shows FRP its substantial strength and toughness.
Some of the more commonly used fiber types in FRP materials are glass fibers (GFRP), carbon fibers (CFRP), aramid fibers (such as Kevlar), and basalt fibers.
The adhesive agent that keeps everything together can be manufactured using a range of plastics, including polyester, epoxy, or vinyl ester. The combination of fiber and resin produces a material that is lightweight, strong, resistant to corrosion, and surprisingly flexible with designs.
Why Adopt FRP in Construction?
Here is where the fun begins. In construction, whether dealing with bridges, buildings, tunnels, or water treatment facilities, challenges arise from corrosion, structural stress, and aging materials. FRP provides a new solution to these longstanding challenges.
FRP Provides Distinct Advantages in Construction:
1. High Strength-to-Weight Ratio:
FRP is remarkably strong relative to its low weight. This makes FRP optimal for structural application when weight is essential, and for use in strategic retrofit locations like bridges, or for floor augmentations in existing buildings.
2. Corrosion Resistance:
Corrosion is one of the greatest headaches in construction, confronted in marine or humid environments. FRP does not corrode as steel does, so it will provide an alternative to long-term durability.
3. Low Maintenance:
FRP will help keep structures intact requiring far less maintenance compared to traditional materials, because of FRP’s resistance to chemical attack, as well as its overall weathering resistance.
4. Design Flexibility:
FRP is comparable to wood; it can be formed nearly any shape, which provides architects and engineers more flexibility when creating complicated or decorative structures.
5. Thermal and Electrical Insulation:
It’s a non-conductor, which allows it to be beneficial where electrical insulation or heat insulation is required.
Common Applications of FRPs in Construction
You may be taken back by the numerous applications FRP is currently utilized in modern infrastructure. Here’s a breakdown of how FRP is making strides:
1. Structural Strengthening and Retrofitting
One of the predominant applications of FRP is used in retrofitting structures that currently exist, mainly old bridges, parking garages, and high-rise buildings. Engineers apply FRP sheets or wraps over beams, columns and slabs to add structural strength for live loads or seismic events.
Why not just use steel? While FRP is reasonably similar to steel, it is easier to install, not prone to corrosion, and does not significantly add weight to existing properties. FRP Sheets are considerably less intrusive and quicker to apply, which is a very important distinction when strengthening existing buildings that are currently in use.
2. Bridge Construction and Decking
FRP bridge decks are becoming increasingly popular, especially in locations that experience saltwater exposure or freeze-thaw differentials.
They are lighter than wood or precast concrete, so they impose less load on supporting structures, while being considerably more resistant to corrosion than concrete or steel.
3. Rebar Replacement
FRP rebar is a developing alternative to traditional rein-forced steel bars specifically intended for concrete subjected to de-icing salts, seawater, and chemicals. FRP will not rust, which could substantially increase the service life of the concrete structure.
This is where FRP starts to partner with Fiber Reinforced Concrete (FRC) for concrete applications. FRC addresses the matrix of the concrete while FRP rebar addresses the concrete from the inside. Using the two assist in providing a durable, low-maintenance structural system.
4. Facades, Roofing, and Cladding
Architects love using FRP for its lightweight characteristics, as well as aesthetics. It can be used to create a bold look on the facade of a building or as a lightweight roofing solution that meets stringent structural requirements.
5. Infrastructure in Harsh Environments
From offshore oil platforms and/or wastewater treatment plants, anywhere that structure is exposed to aggressive chemicals, or moisture, can benefit from FRP’s resistance to corrosion and fatigue.
FRP vs Fiber Reinforced Concrete (FRC)
Since Fiber Reinforced Concrete is another material that is becoming a trend, it may be good to summarize and compare with FRP.
FRP is used in combination with or instead of traditional reinforcement such as steel, but especially in high stress areas and/or areas susceptible to corrosion.
FRC, which is an acronym that refers to fiber reinforced concrete, is concrete that incorporates fibers directly into the concrete matrix. These fibers (steel, glass, synthetic, etc.) are intended to control cracking as well as enhance tensile strength.
While both are “fiber reinforced”, they work on different levels. Consider FRC as improving the concrete itself and FRP as reinforcing the structure around or within the concrete.
It is becoming common in many projects to employ both methods of reinforcement to gain the maximum benefit of each- FRC for the concrete matrix and FRP rods, wraps or sheets to reinforce the structure.
Challenges and Considerations
Like any material, FRP has flaws. The following is a series of challenges:
1. Cost
The overall cost of FRP will be more expensive than traditional materials up front. However, can often be recouped after reduced maintenance and long service life is taken into account.
2. Fire Resistance
In general, most FRP materials have poor fire resistance characteristics unless treated with additives or coatings, which can limit application unless properly mitigated.
3. UV Degradation
Continuous exposure to UV light can be detrimental for some forms of FRP. As stated above, to mitigate UV lighting, a coat can be applied, however, this still needs to be taken into consideration.
4. Limited Experience in the Industry
There are not many contractors or engineers knowledgeable and experienced in working with FRP This could lead to challenges or mistakes in design or construction due to lack of training and experience.
The Future of FRP in Construction
As the construction industry moves toward sustainable, resilient, and budget-friendly practices, FRP will likely play a larger role than ever. Its ability to extend the life of existing structures, eliminate the need for maintenance, and stand up to harsh environments makes it a good material choice for future structures.
With sustainability in mind, the mechanized processes of recycling and eco-friendly resins have progressed and are continuously improving which will only enhance FRPs environmental impact.
Additionally, as engineers and architects continue to test and use FRP more often, there will be many creative uses of Fiber Reinforced Plastic in everything from smart cities to disaster resistant structures.
Final Thoughts
Fiber Reinforced Plastic (FRP) is more than a fad; it’s a viable, high-performance answer to some of construction’s most pressing issues.
It is lightweight, resistant to corrosion, and adaptable, giving engineers and architects an avenue to create stronger structures and last longer with the natural shortfalls of traditional materials.
Using FRP to augment the strength of Fiber Reinforced Concrete will also increase structural performance, which establishes new ways to build durability, sustainability, and efficiency in construction.
Whether you’re building a future-famous bridge or simply updating a vulnerable structure, FRP is a viable material to consider.
